Metric Adapters Include DIN Bite Type Tube Fittings 24° Cone DIN2353, Metric Thread 60° Cone DIN7631, as well as Metric Thread ISO6149.
Metric Adapters include DIN bite type tube fittings 24° cone DIN2353, Metric thread 60° cone DIN7361, as well as metric thread ISO6149, to other threads forms such as JIC, NPT, and etc.
Laike sells the best metric adapters to the world, click contact us to buy online.
Popular Metric Adapters Recommended
|
|
|
|

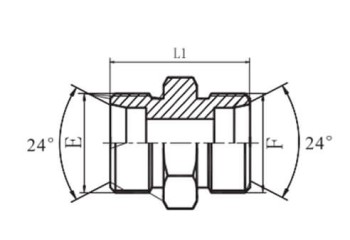

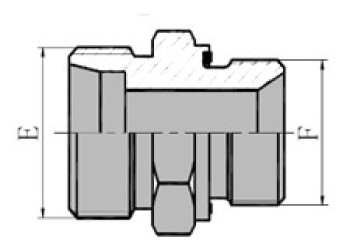

| STRAIGHT FITTINGS | JIC 74 CONE SEALING | METRIC THREAD 60 CONE SEALING OR BONDED SEAL STUD ENDS | BSP THREAD STUD ENDS WITH O-RING SEALING |

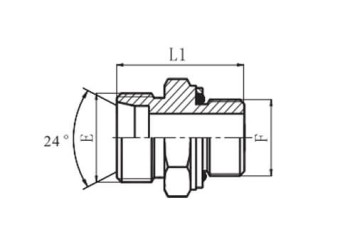

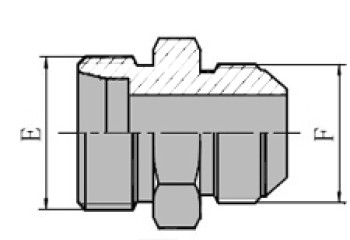

| 1C/1D | 1CJ/1DJ | 1CM/1DM | 1CG/1DG/1CG-RN/1DG-RN |
|
|
|
|

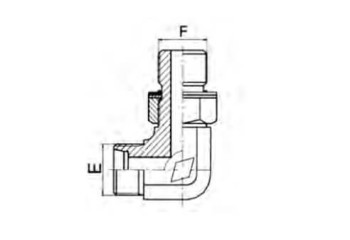

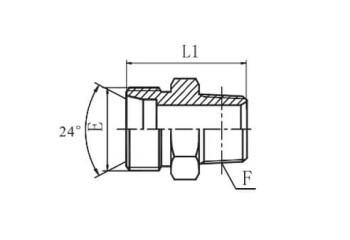

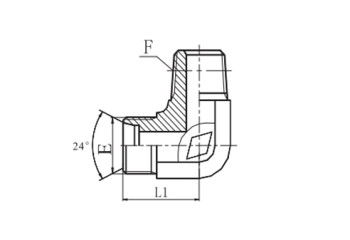

| 45°ELBOW SP THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING | 90°ELBOW SP THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING | NPT MALE | 90°NPT MALE |

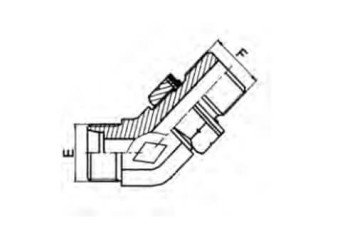

| 1CG4-OG/1DG4-OG | 1CG9-OG/1DG9-OG | 1CN/1DN | 1CN9/1DN9 |
|
|
|
|

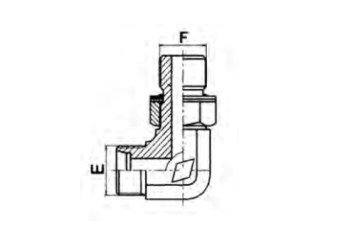

| METRIC THREAD STUD ENDS ISO 6149 | 45°METRIC THREAD STUD ENDS ISO 6149 | 90°METRIC THREAD STUD ENDS ISO 6149 | 90°ELBOW UN、UNF THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING |

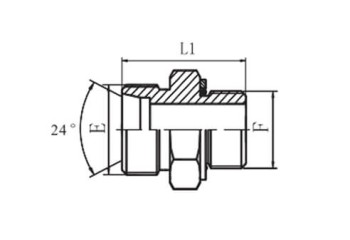

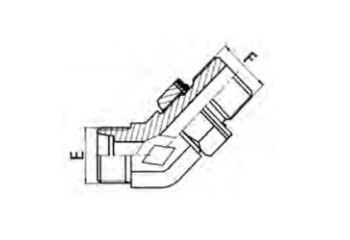

| 1CH | 1CH4 | 1CH9 | 1CO9/1DO9 |
|
|
|
|

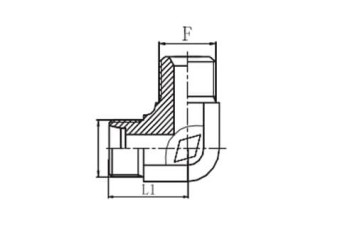

| BSP THREAD 60 CONE SEALING OR BONDED SEAL STUD ENDS | 90°ELBOW SP THREAD 60 ° CONE SEALING | WELD FITTINGS | 90°ELBOW UN、UNF THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING |

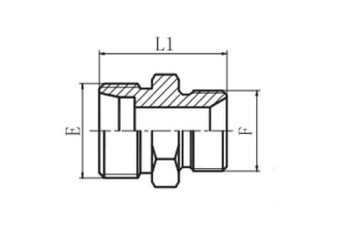

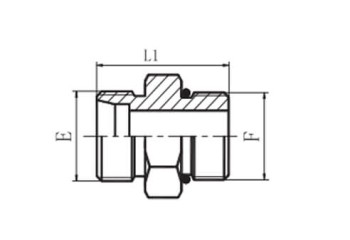

| 1CB/1DB | 1CB9/1DB9 | 1CM/1DM | 1CO/1DO |
|
|
|
|

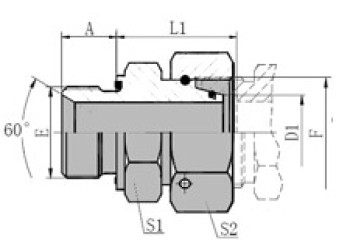

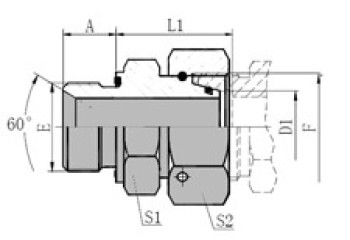

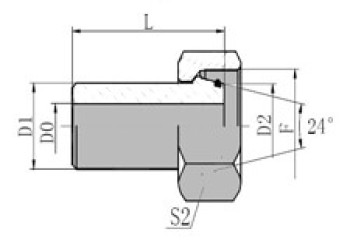

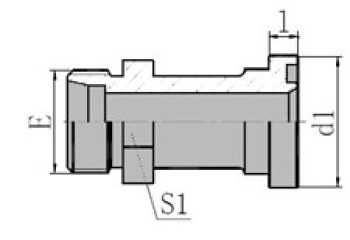

| BSP THREAD WITH CAPTIVE SEAL | METRIC THREAD WITH CAPTIVE SEAL | WELD FITTINGS | SAE FLANGE WITH STANDARD SERIES AND SAE FLANGE WITH HIGH PRESSURE SERIES |
| 2BC/2BD | 2MC/2MD | 2WC/2WD | 1CFL/1DFL/1DFS |
|
|
|
|

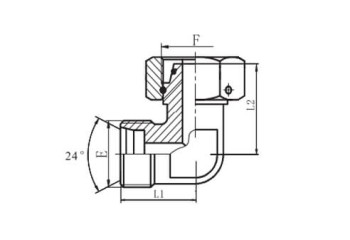

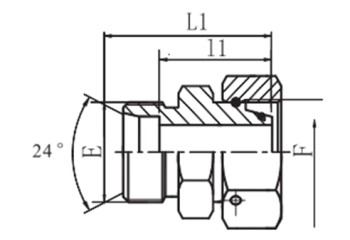

| REDUCER TUBE ADAPTOR WITH SWIVEL NUT | 90°ELBOW EDUCER TUBE ADAPTOR WITH SWIVEL NUT | BSP THREAD WITH CAPTIVE SEAL | METRIC THREAD WITH CAPTIVE SEAL |
| 2C/2C-RN/2D/2D-RN | 2C9/2D9/2C9-RN/2D9-RN | 2CB/2DB | 2MC/2MD |
|
|
|
|

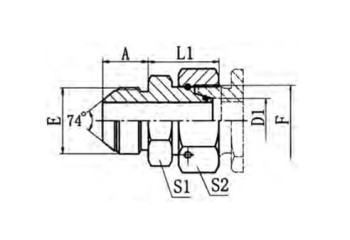

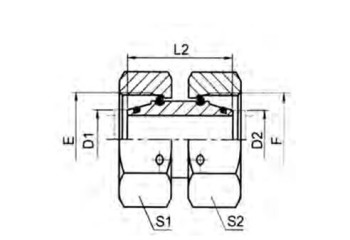

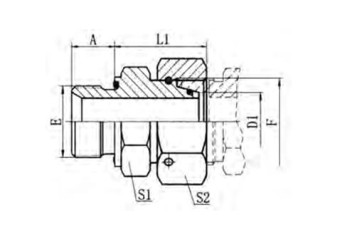

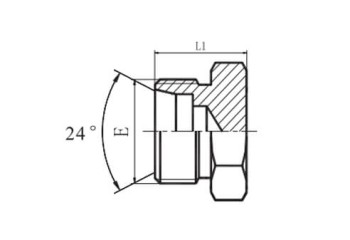

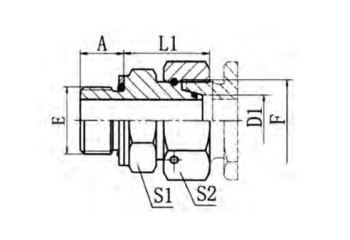

| JIC 74°CONE SEALING | BSP THREAD STUD ENDS WITH O-RING SEALING | STRAIGHT TUBE ADAPTERS WITH SWIVEL NUT | PLUG |
| 2JC/2JD | 2GC/2GD | 3C/3D | 4C/4D |
|
|
|
|

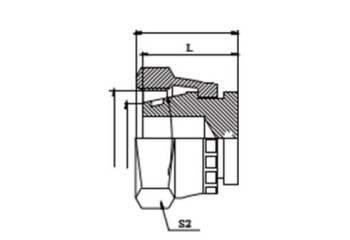

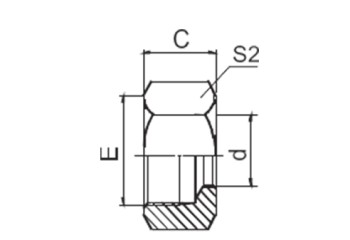

| FEMALE PLUG | METRIC FEMALE | RETAINING NUTS | CUTTING RING |

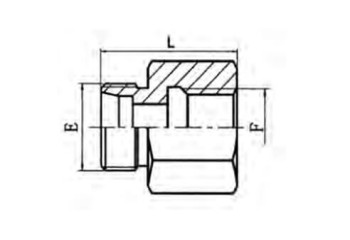

| 9C/9D | 5CM/5DM | NL/NS | RL/RS |
|
|
|
|

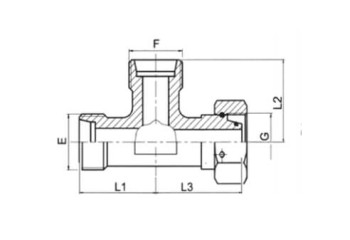

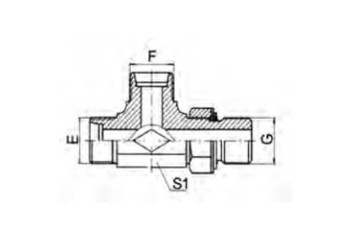

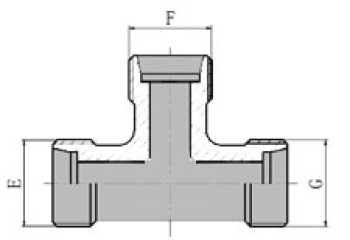

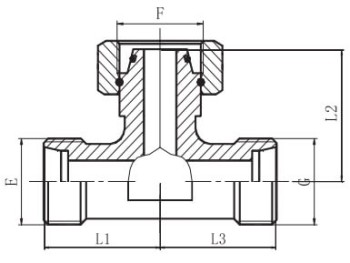

| TEE REDUCERS | BRANCH TEE FITTINGS WITH SWIVEL NUT | RUN TEE FITTINGS WITH SWIVEL NUT | ACCH-OG ADDH-OG/ACCH-OG/RN ADDH-OG/RN |
| AC/AD | BC/BD | CC/CD | ACCH/ADDH |
About Metric Adapters
DIN bite fitting, or 24° tube fitting, has a special design of cutting ring to undertake high pressure and extreme vibration. When the nut is screwed onto the fitting, its base touches the cutting ring, wedging it into a 24-degree cone to cut into and grip the tube. The metric 24° follow the DIN2353 standard and have a light and heavy series. Two series share some of the thread sizes, but the tube OD of the heavy series is smaller and has a thicker tube wall. As the tube and sealing cone are different sizes, light and heavy series are not interchangeable. Light series undertake pressure up to 4000psi, and heavy series undertake pressure up to 6000psi.
The metric 60° cone DIN7631 has male half with 60 degrees recessed cone and a straight thread and female half with a global and straight thread. The 60-degree cone of the male half and the global of the female half bite together to form a seal and strong connection.
The metric thread ISO6149 has male half with O-ring and a straight thread and female half with a chamfer and a straight thread. The O-ring of the male half is compressed into the chamfer of the male half to form a seal and strong connection .
Buy the best metric adapters
If you are looking for suitable metric adapters, please contact us immediately or communicate with our professional team.
