Metric Thread  Hydraulic Fittings

Metric thread type is most common in Europe. The male has a 24° sealing angle cone seat with straight metric threads.The female has a 24° convex cone with O-ring and a swivel straight metric threaded nut.It has a cylindrical inner and outer diameter precise in millimeters. The fine taper of metric tapered thread allows for the best possible force transmission. In writing, you can identify metric threads by a capital “M” plus an indication of their nominal outside diameter (ex. M22 x 1.5). Lastly, when measuring pitch size make sure you’re using a metric pitch gauge.

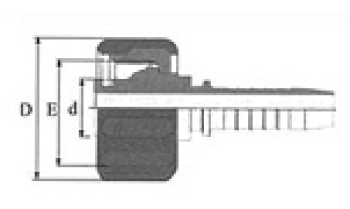

Flat Seal

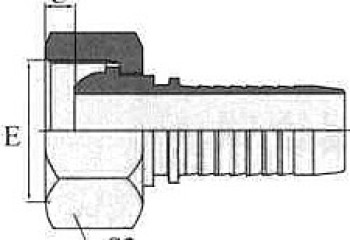

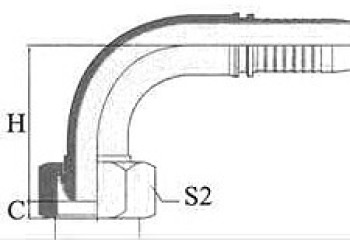

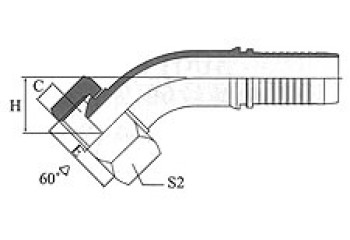

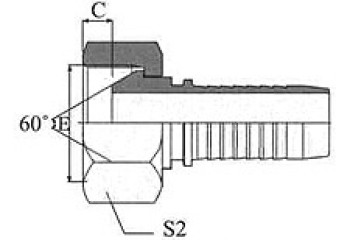

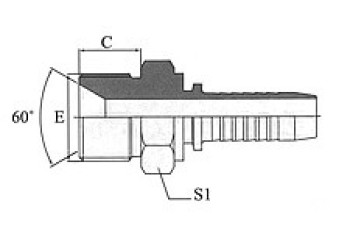

60° Cone Seal

Multiseal

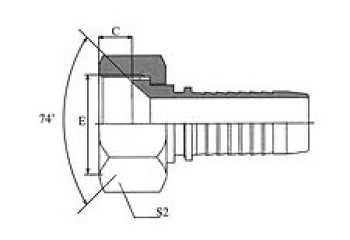

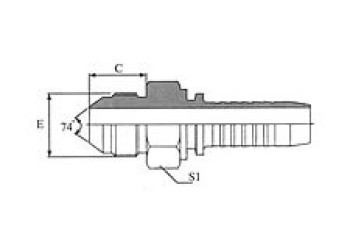

74° Cone Seal

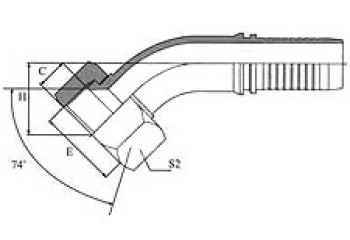

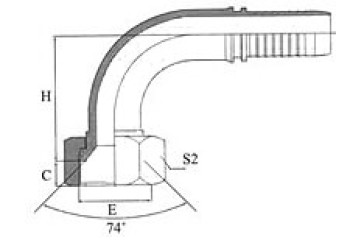

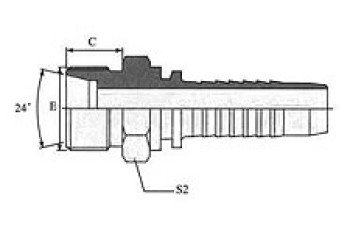

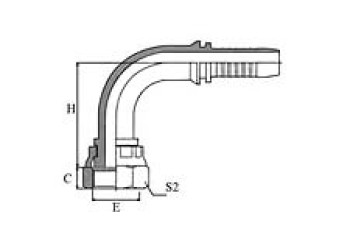

24° Cone O-Ring Seal L.T. / 24° Cone O-Ring Seal H.T.

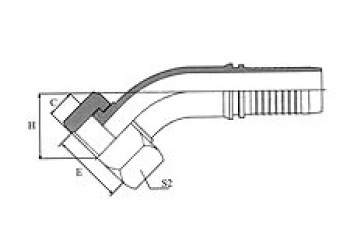

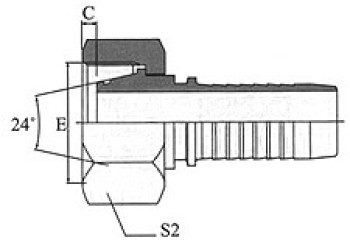

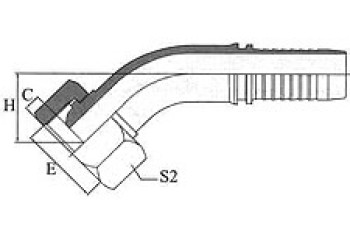

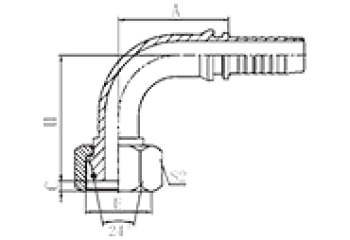

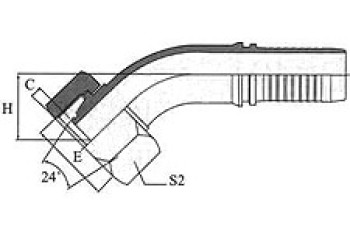

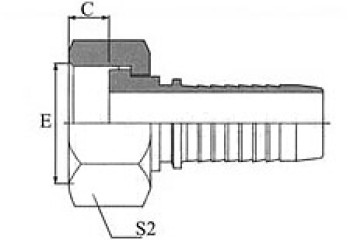

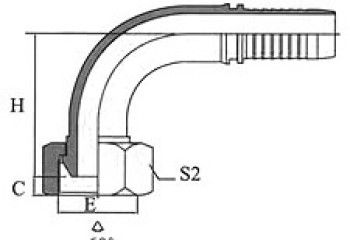

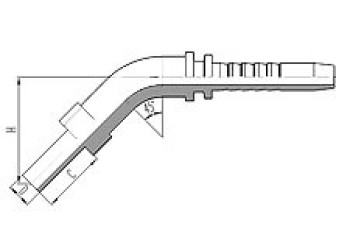

METRIC FEMALE 24º CONE O-RING L.T.	45º METRIC FEMALE 24º CONE O-RING L.T.	90º METRIC FEMALE 24º CONE O-RING L.T.	METRIC MALE 24º CONE O-RING L.T.
20411/20412	20441/20442	20491/20492	10411/10412

Metric Waterwash

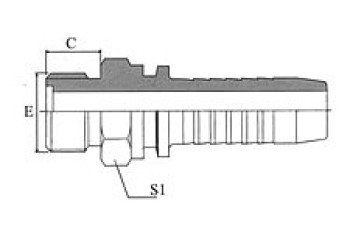

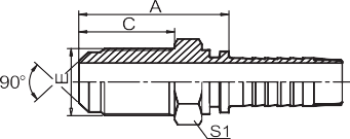

METRIC MALE 90°CONE SEAT

10811/10812

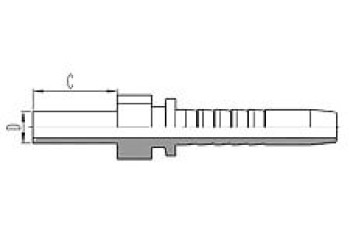

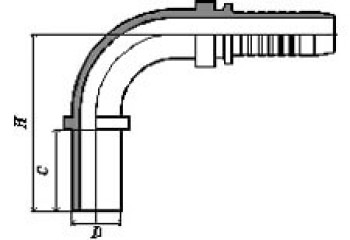

METRIC STANDPIPE STRAIGHT

How to order Hose Fitting

Example:Fitting series is P15611,fitting thread is Z1/2"×14,hose bore is 12mm,and is made of carbon steel the number is P15611-08-08,if made of stainless steel,the number is P15611-08-08SS.

Note:1.For use with braided hoses.2.If use with spiral hoses,the fifth number of hose fitting series change from "1" to "2",for example: from P26711-**-** to P26712-**-**

Hydraulic hose fittings are necessary when connect various conductors such as tubes, pipes, and hydraulic hoses in the hydraulic system. Most of connections pipe fittings have a male and female component to accommodate the connection and assist with the process of containing and directing the flow of fluid. Also it can prevent any leakages and maintain pressure in the hydraulic system. Consequently, hydraulic fittings need to be strong, versatile, and reliable to operate safely and effectively in their respective applications. So hose fittings typically adhere to strict standards which dictate fitting construction, dimensions, and pressure ratings. Our Jinchi fitting factory are hose supplier and supplier different hydraulic fitting types(custom fitting, flare fittings,JIC fittings, NPT fitting, parker hydraulic fittings, push lock fittings, flared fitting, BSPP fittings, metric hydraulic fittings, bsp fitting, ptfe fitting, stainless steel fittings, SAE fittings, reusable hydraulic hose fitting, swivel pipe fitting).
